Brooks Lincoln Straight Stairlift

Technical Specification
Blog


Specifications

Motor power0.5hp
Travel SpeedNo greater than 0.15 m/s
Method of driveRack and pinion
Motor output torque 108Nm
Power supply(battery)24v DC
Maximum capacity20 Stones/ 127 kg/ 280 lbs
Track Extruded aluminium
Main supply110v, 50Hz charger

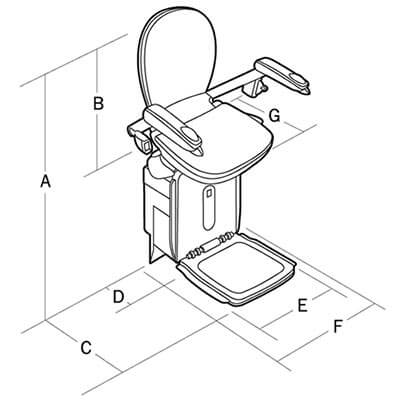

Dimensions

Inch

MM

AWidth outside armrest 22560
BWidth inside armrest17.5445
CWidth of backrest14.5370
DDepth of seat16410
ETop of footrest to top of seat17.5445
FRequired space from bottom of stair26660
GWall to seat height1.540
HOverall height of seat19.5495
IOverall height401020
JFootrest surface to floor4.5115
KOverall depth(folded)13325
LOverall depth(footrest down)23585
